Product Description

l Front/back surfaces coated with beamsplitter coating/anti-reflective coatings respectively

l Four wavelength designs suitable for Nd:YAG laser applications

l 30 arcmin wedge design on both surfaces to separate reflected and transmitted light

l Available in Ø12.7 mm and Ø25.4 mm diameters

     When using Nd:YAG lasers, it is often necessary to distinguish the fundamental frequency of the output laser from its harmonic components. Tuniu Nd:YAG Harmonic Beamsplitters utilize the transmission and reflection effects of different optical coatings on different wavelengths. The incident surface is coated with a beamsplitter coating, effectively separating the harmonics of the Nd:YAG laser. The output surface is coated with a V-type AR coating, minimizing reflections at the air-glass interface within a specific wavelength band (compared to the typical reflectivity of 4% on uncoated optical surfaces, the AR coating reduces the average reflectivity of each surface to below 0.5% within the specified wavelength band). Combined with a 30-arcmin wedge structure, this effectively reduces interference effects between reflected light from the incident and output surfaces. Tuniu offers Nd:YAG harmonic beamsplitters in four wavelength configurations and two sizes: Ø12.7 mm and Ø25.4 mm. Tuniu also offers a variety of customization services, including custom sizes and design wavelengths. For specific customization requirements, please contact Tuniu Technical Support.

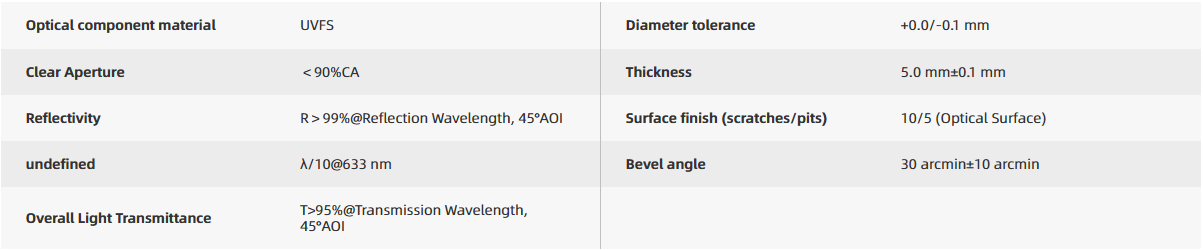

Attributes

UVFS, Nd:YAG Harmonic Beamsplitters, Ø12.7 mm

l Commonly used for separating Nd:YAG laser harmonics

l Can be used for optical path deflection

l Harmonic wavelengths: 266 nm, 355 nm, 532 nm, and 1064 nm

     Tuniu Nd:YAG Harmonic Beamsplitters can be used to separate Nd:YAG laser harmonics. These harmonic beamsplitters not only minimize reflected light interference but also deflect beams of specific wavelengths, with four wavelength configurations available.

UVFS, Nd:YAG Harmonic Beamsplitters, Ø25.4 mm

l Commonly used for separating Nd:YAG laser harmonics

l Can be used for optical path deflection

l Harmonic wavelengths: 355 nm, 532 nm, and 1064 nm

     Tuniu Nd:YAG Harmonic Beamsplitters can be used to separate Nd:YAG laser harmonics. These harmonic beamsplitters not only minimize reflected light interference but also deflect beams of specific wavelengths, with four wavelength configurations available.
